PAPERBIRD
​纸鸢

Paperbird is a versatile utility module built around two square-wave generators that cross-modulate to unlock a wide range of functions. Each function can also process external signals by patching into the corresponding jacks, replacing the internal square waves.

​

Core Controls

• A / B Knobs: Adjust the rate of the two internal square waves

• A / B CV Inputs: Modulate the square wave rates with external CV

​

​

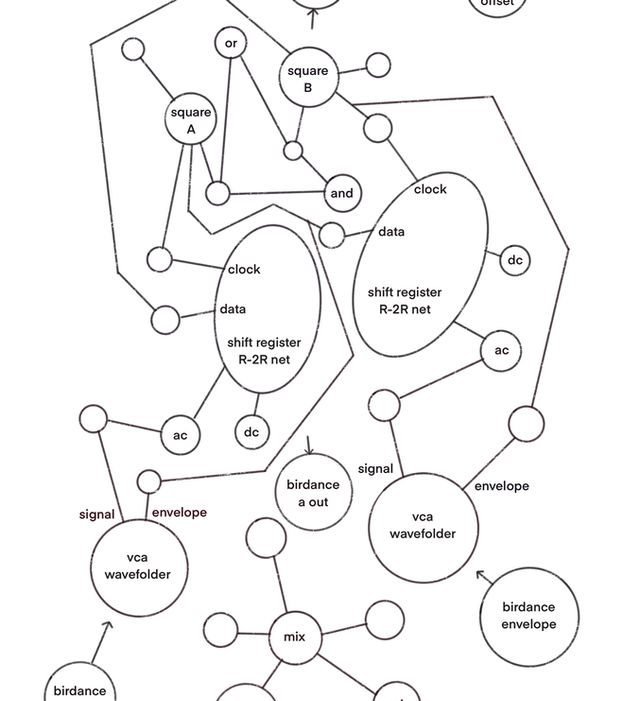

Functions (Top to Bottom)

1. Logic

• Internal square waves A & B are normalled to inputs A and B

• Patch into A or B to replace internal signals with external audio/CV

• OR Output: Logical OR of the two inputs

• AND Output: Logical AND of the two inputs

• Bonus: Feeding audio signals converts them into square waves at the outputs

​

2. Shifting Register

​

• Two independent shift register sections:



  • Top: A = Clock, B = Data

  • Bottom: A = Data, B = Clock



• External signals can replace A/B

• Outputs per section:



  • DC1 / DC2: Stepped voltages via R-2R DAC

  • AC1 / AC2: Smoothed versions of DC outputs for flowing modulation

​

3. VCA + Wavefolder

​

• AC1 / AC2 feed into signal inputs

• A / B feed into control inputs

• Patch external signals for either input

• Behavior:



  • Low control signal → acts as VCA

  • Higher control → signal folds beyond threshold

  • Adjust controls for pure VCA, pure wavefolder, or hybrid shaping

​

4. Mixer

​

• Three-channel mixer with:



  • MIX & MIX MULT: Mixed signal

  • -MIX: Inverted mix



• Fully independent; no internal routing

​

Rear Panel Trim Pots

​

• 2 × Smoothing for AC outputs

• 2 × Fold thresholds for wavefolders

​

Birdance – 4HP Expander

​

Connect via the rear header for extended features:

• A / B Individual Outputs (raw square waves)

• Extra CV inputs for the two VCAs (normalled to +6V with attenuators)

• Offset Generator: Adjustable -6V to +6V CV source
